CURRENT & PAST PARTS WE HAVE FABRICATED

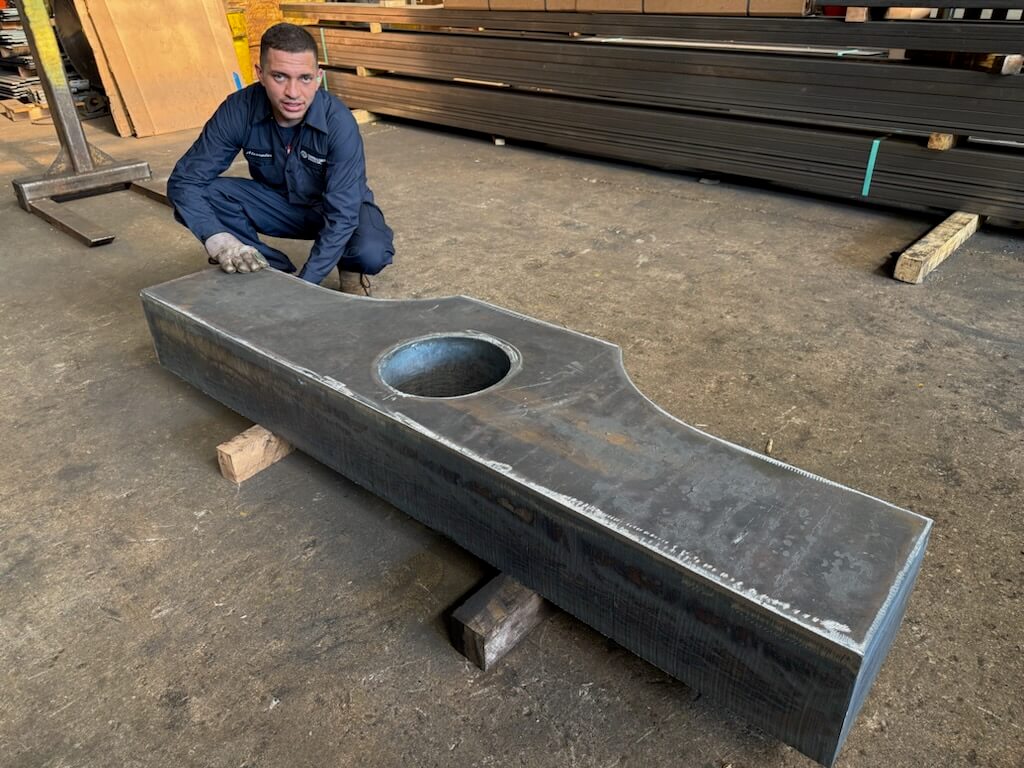

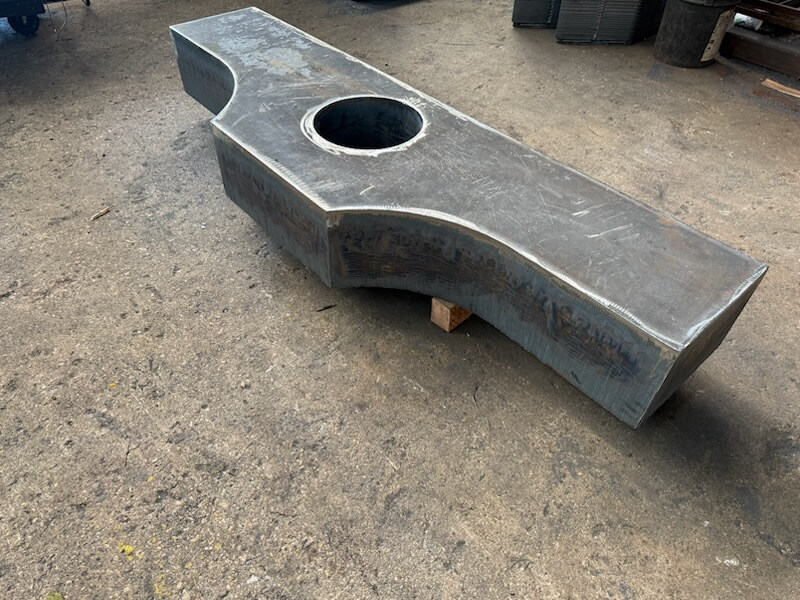

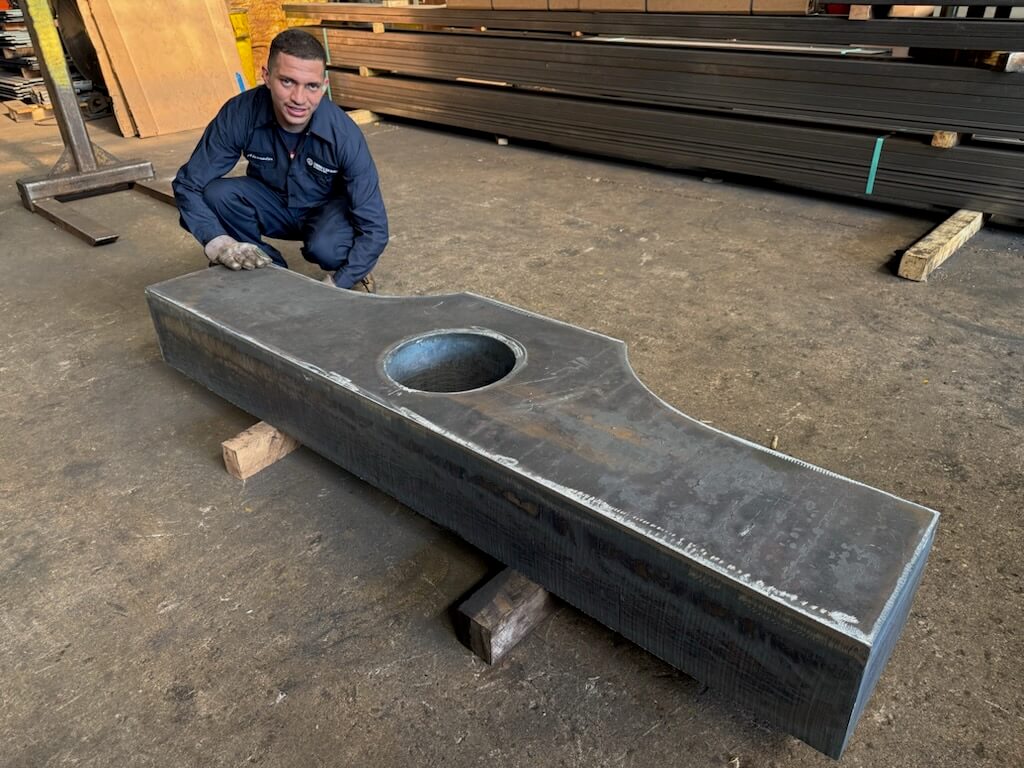

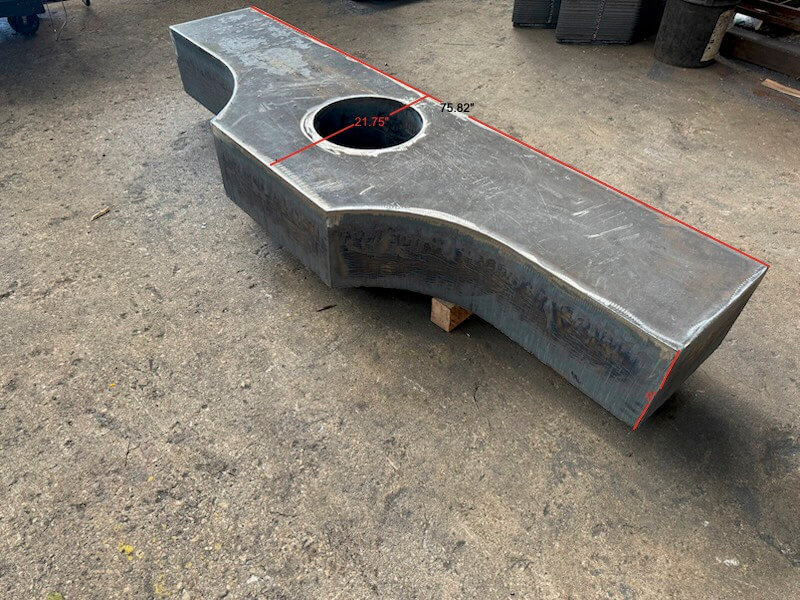

Burning

Large Base Plate Fabrication

We are currently fabricating large base plates for one of our largest customers. Size range from 3.75” x 48” x 144” to 2.75” x 48” x 48.

Plates are being flamecut to size from a 4” x 96” x 240” plates and then transferred to our vertical milling center where they are milled down to thickness and then holes drilled with 3.25” diameter drill holding a tolerance of plus/minus .005! Again, everything was done in-house at Sawing and Shearing Services, Inc.

Frag pump rough milling

Another one of our biggest milling jobs consists of milling a block of 23.75″thk X 26.50″ X 246.125″ down to 22.50″thk X 25.25″ X 246.125″.

Block 1
Photo 1

Structual Tube A-500 material

We are currently fabricating Structural Tube A-500 material 8″ x 6″ x .25″ x 63.25″ where we cut a compound miter on one end.




LARGE SCALE CNC MACHINING

Cnc Machining With Dimensions Copy

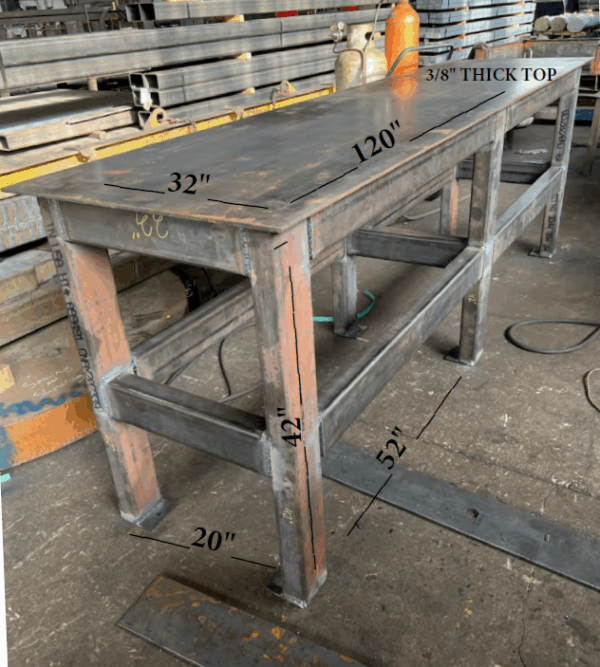

Pirtek Table W Dimensions (updated)




Steel table

Steel table that we have fabricated for one of our customers. Please see sizes on picture for details.

platform

Working / walking platform for machinery and equipment.

Table Samuel Sanchez 2 Cropped Min
Sled Jose Sanchez Min

SLEDS

Sleds for loading material into shipping containers.







counter weight shells



Counter weight shells that are welded and filled with material.

Wiggins Shell Sanchez Brothers 1 Min
