Our Services

CNC Machining

CNC machining, or computer-numerical control machining, increases steel fabrication productivity without losing quality.

CNC machining is an excellent choice for high-volume or complex fabrication needs. Sawing and Shearing utilizes five machining centers to machine any grade of material with a 42” height x 84” width x 156” length max capacity.

CNC Machines

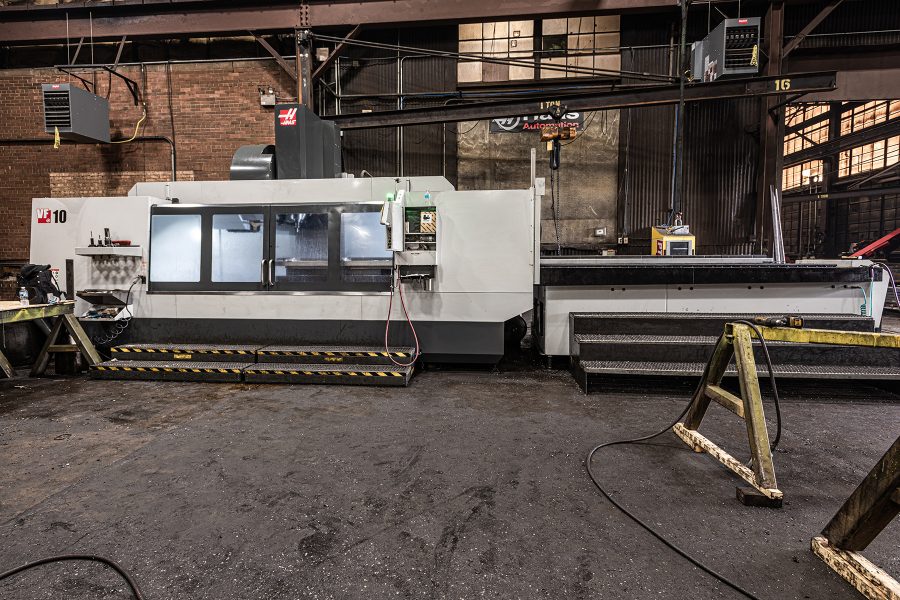

HAAS VF-10 / 50 taper With an 120” X 32” 30” XYZ travel



It is also equipped with a Midaco Automatic Pallet System: Series 36a, 5,000# capacity with pneumatic receiver. It comes with 2-120″ long x 32″ wide x 2″ thick end load cast aluminum pallets, 1- Series S40 end load shuttle unit with automatic door and indicator lamp.

  • 50 Taper Machine
  • Drilling
  • Counter Sinking
  • Counter Boaring
  • Tapering & Beveling
  • Tapping
  • Milling
  • Holding Tolerances of +/-.002
  • Is a 3 Axis Machine
  • Capable of machining any grade of material Angle, channel, bar, beam, tubing and plate
  • Midaco Automatic Pallet system
  • Angle, Channel, bar, beam, tubing, and plate.
Vf5 Min

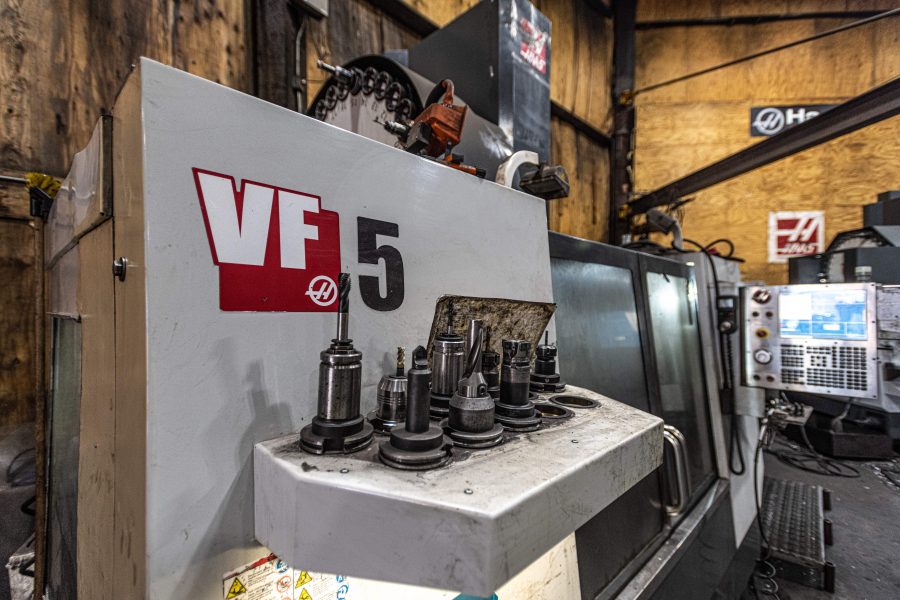

HAAS VF-5 Vertical Machining Center With a 50" x 26" x 25" XYZ travel

It is also equiped with a Midaco Automatic Pallet System: Series 36a, 2,000# capacity with pneumatic reciever. It comes with 2-50″ long x 24″ wide x 2″ thick end load cast aluminum pallets, 1- Series S40 end load shuttle unit with automatic door and indicator lamp.

  • 50 Taper Machine
  • Drilling
  • Counter Sinking
  • Counter Boaring
  • Tapering & Beveling
  • Tapping
  • Milling
  • Holding Tolerances of +/-.002
  • Is a 3 Axis Machine
  • Capable of machining any grade of material Angle, channel, bar, beam, tubing and plate
  • Midaco Automatic Pallet system
Vf3 Min

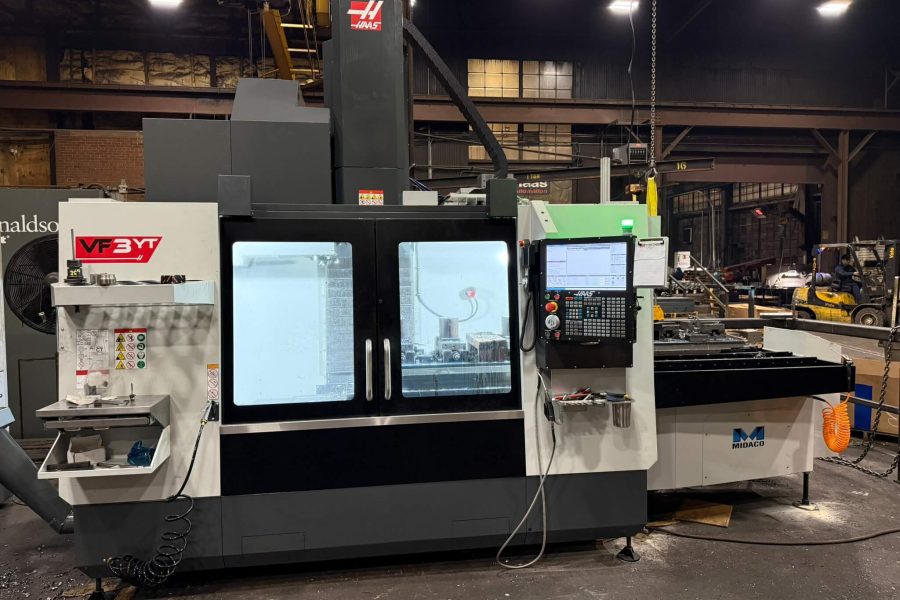

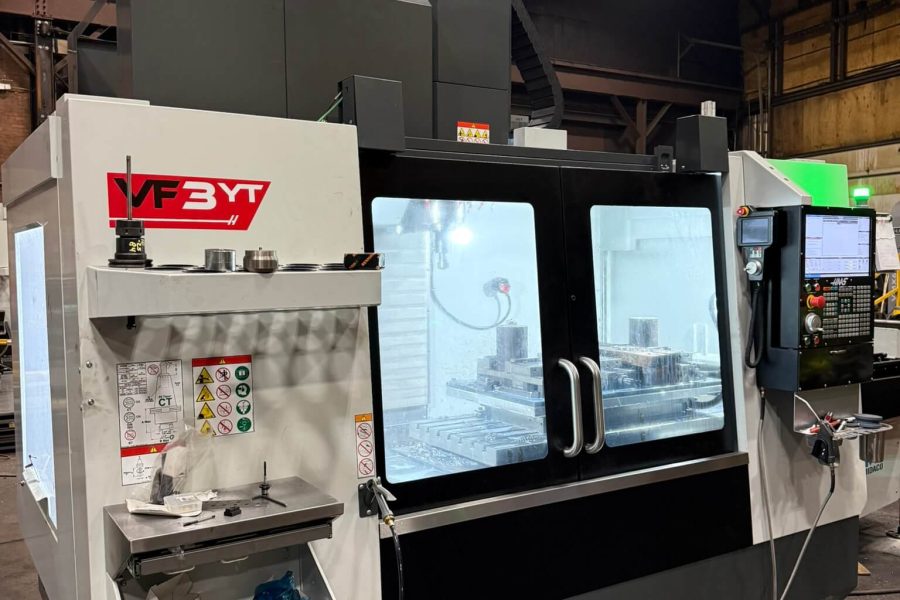

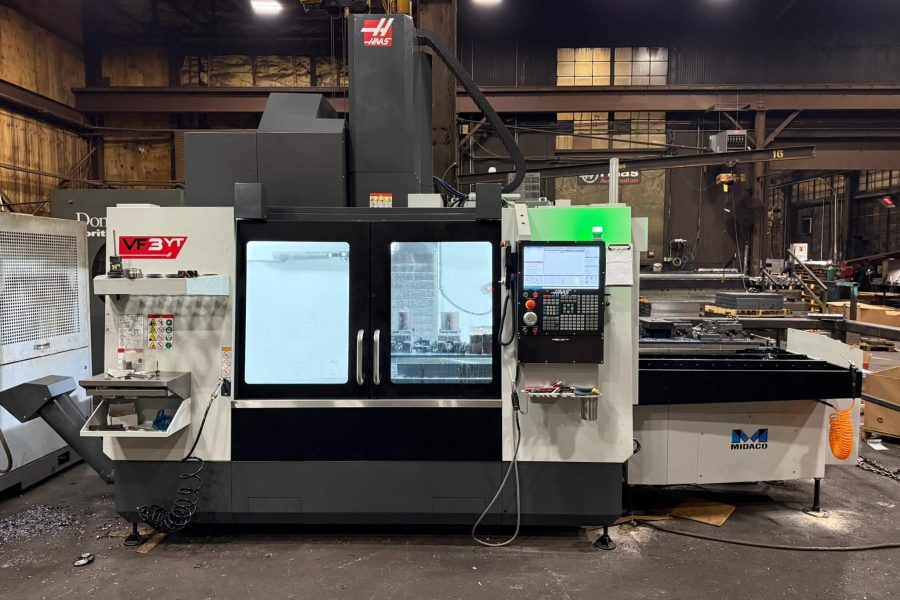

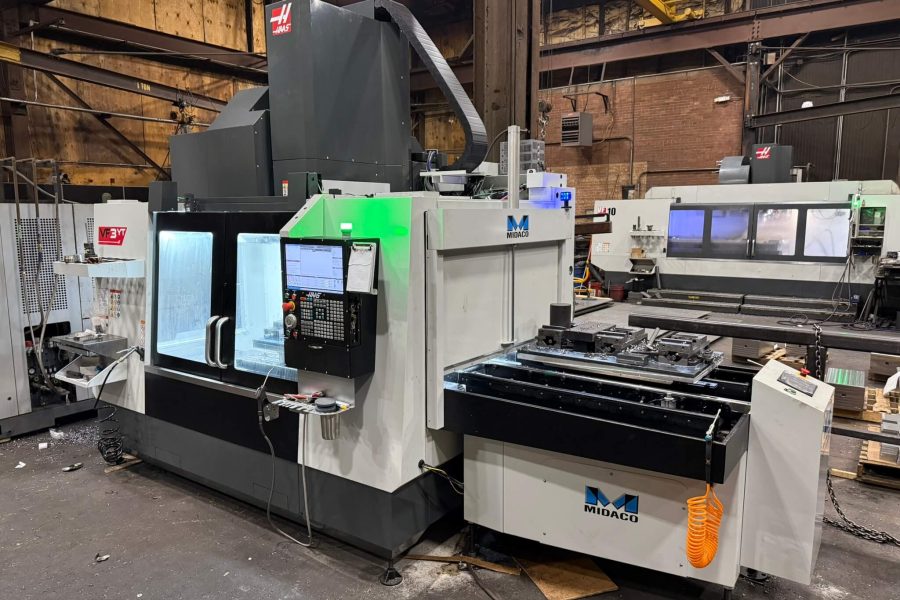

HAAS VF-3YT/50 Vertical Machining Center With a 40" x 26" x 25" XYZ travel

It is also equipped with a Midaco Automatic Pallet Changer, 1-Series 30A 1,000# capability with pneumatic receiver, 2-40″ long x 24″ wide end load cast aluminum pallets, 1-series 40 end load shuttle unit with automatic door and indicator lamp.

  • 50 Taper Machine
  • Drilling
  • Counter Sinking
  • Counter Boaring
  • Tapering & Beveling
  • Tapping
  • Milling
  • Holding Tolerances of +/-.002
  • Is a 3 Axis Machine
  • Capable of machining any grade of material Angle, channel, bar, beam, tubing and plate
  • Midaco Automatic Pallet system

Deckel Maho "DMF-360" Vertical Machining Center With a 141.73" x 43.3" x 35.4" XYZ travel

Vertical Machining Center, Deckel Maho “DMF-360” S-AXIS TRAVEL COLUMN, new 2011, Siemens 840D “Ergoline” CNC control, 165.35″ x 43.25″ table, 11,000 lb. table load, 141.73″ X, 43.3″ Y, 35.43″ Z-axis, 3,937 1PM X-axis rapid, SK-SO taper, spds: 20-10,000 RPM +/-90 deg. “B” axis tilt spdl., 44/32 kW, 120 pos. ATC, MMK Mdl. MD63UR-80 rotary table w/10-1/2″ spdl. hole, 24″dia. thru hole 4-jw chuck w/tailstock, Hp thru-spdl. coolant, coolant filtration system, chip conveyor, touch probe, 3D quick/SET.

Mighty Viper 2021 161" x 87" XY Travels. 43.3" Z Travel With 51" Clearance. 83" x 157" Table Size

Mighty Viper PMC-4122 Bridge Vertical Machining Center

161″ x 87″ XY Travels. 43.3″ Z Travel With 51″ Clearance. 83″ x 157″ Table Size. 6,000 RPM 2 Step Gear Type Spindle. 35HP Motor. CAT-50 Spindle. Fanuc 31i-MB Control

Our Quality Management Program is aimed at providing the highest quality level of steel fabricating found in today's market.

Sawing and Shearing Service’s commitment to customer satisfaction and quality includes the implementation of a Quality Management Program. Sawing and Shearing’s overriding objective is to fulfill or exceed our customer’s expectations. Achieving our customer’s satisfaction with every job is Sawing and Shearing’s top priority. Our Quality Management Program is aimed at providing just this; the highest quality level of steel fabricating found in today’s market.

S&s239
What our clients are saying…

QUALITY CONTROL

Employee Quality

After completing extensive facility and safety training, Sawing and Shearing’s employees support quality assurance through every step of the fabrication process.

Detailed Inspection

Our employees complete detailed inspections throughout the fabrication process, ensuring accuracy and eliminating room for error.

Business Experience

It is our years of experience as a trusted outside steel fabricator that can assure you the job will be done right by Sawing and Shearing Services.

We are dedicated to providing high-quality services to each of our clients, and the assurance their project is constructed to meet their highest expectations.

Open communication and a clear understanding of required quality standards between us and our client is essential. The quality process should focus on prevention of errors and elimination of rework as well as on testing and inspection. And finally, client satisfaction is vital to both of our continued success.
